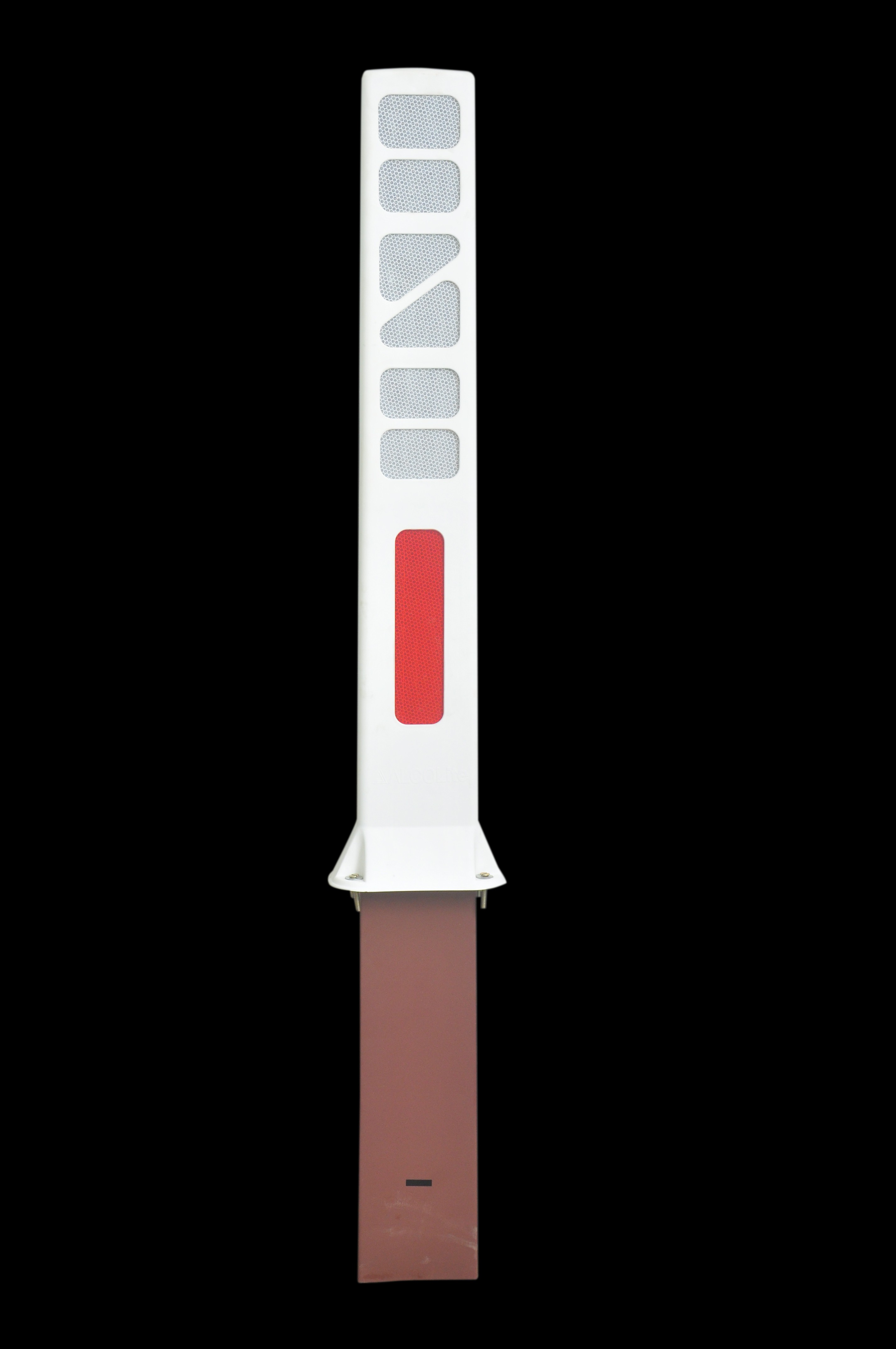

The delineator is the most common form of marking of the edge of the road. It enables safer driving especially in more difficult weather conditions and at night. The body is made of engeneering plastic which is additionally UV stabilised after the procedure of extrusion, which gives a firm product with uniform walls. The colour of the product is white / black / orange /yellow /custamized . The delineator is tested and complies with the standard MORTH.

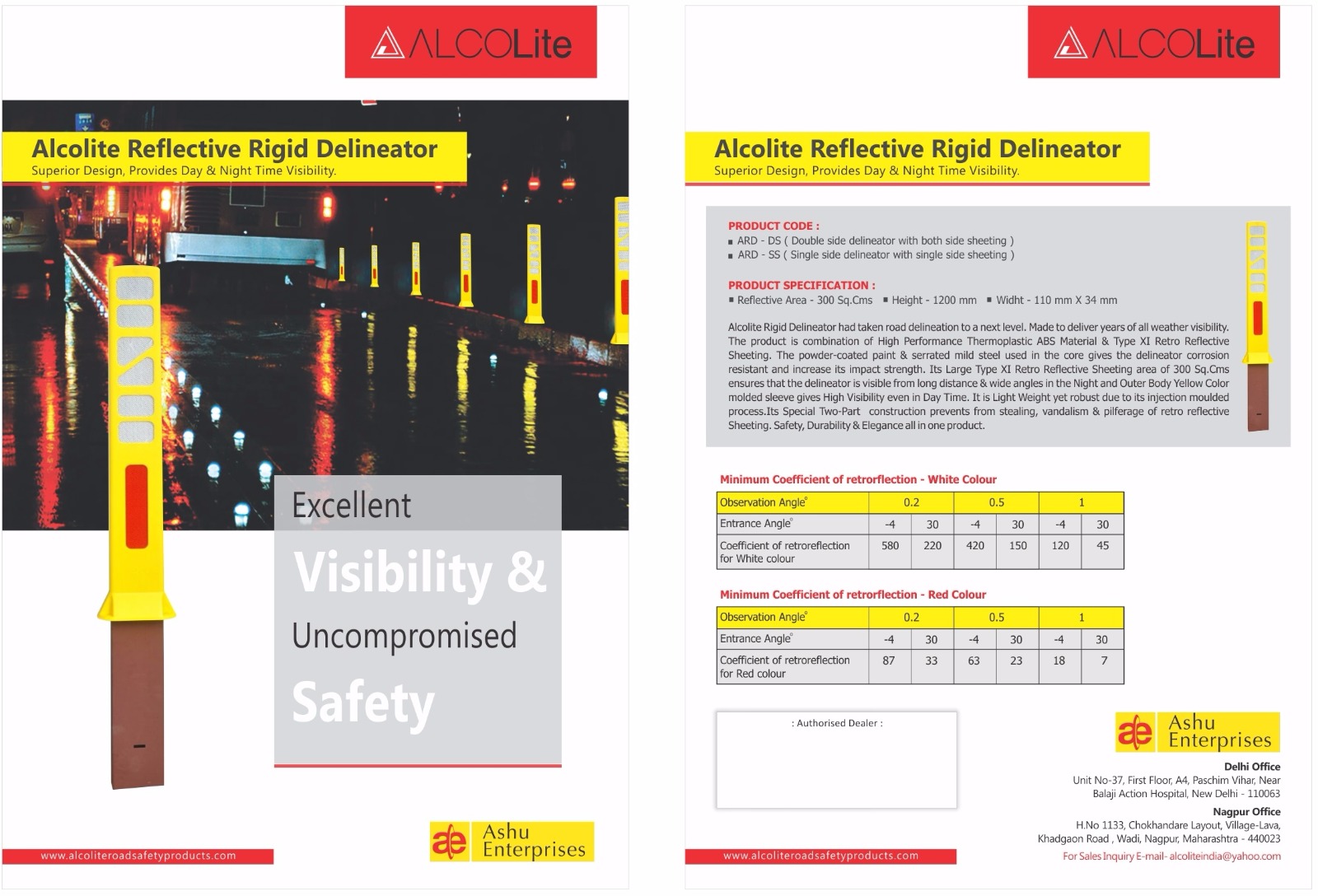

Alcolite Rigid Delineator have provide ASTM Type XI Micro prismatic reflector and large Reflective area of 300 sqcm . The color combination of delineator, white and red Color reflector & Traffic yellow outer sleeve ensure the delineator is visible day and night . The outer Plastic moulded sleeve made of high impact thermoplastic matarial . The Plastic moulded sleeve provide stealing, vandalism and pilferage of the reflective sheeting. The painted mild steel used in core give the delineator corrosion resistance and increases impact strength.
DELINEATOR HIGHT | 1200 mm |
WIDTH | 110 mm X 34mm |
REFLECTIVE SHEET | T- 11 MAKE AVERY DENNISON |
REFLECTIVE AREA | 300 sqcm |
Size of Delineator
Height - 1200 mm
Width - 110 mm x 34 mm
Reflective Area - 300 sqcm
